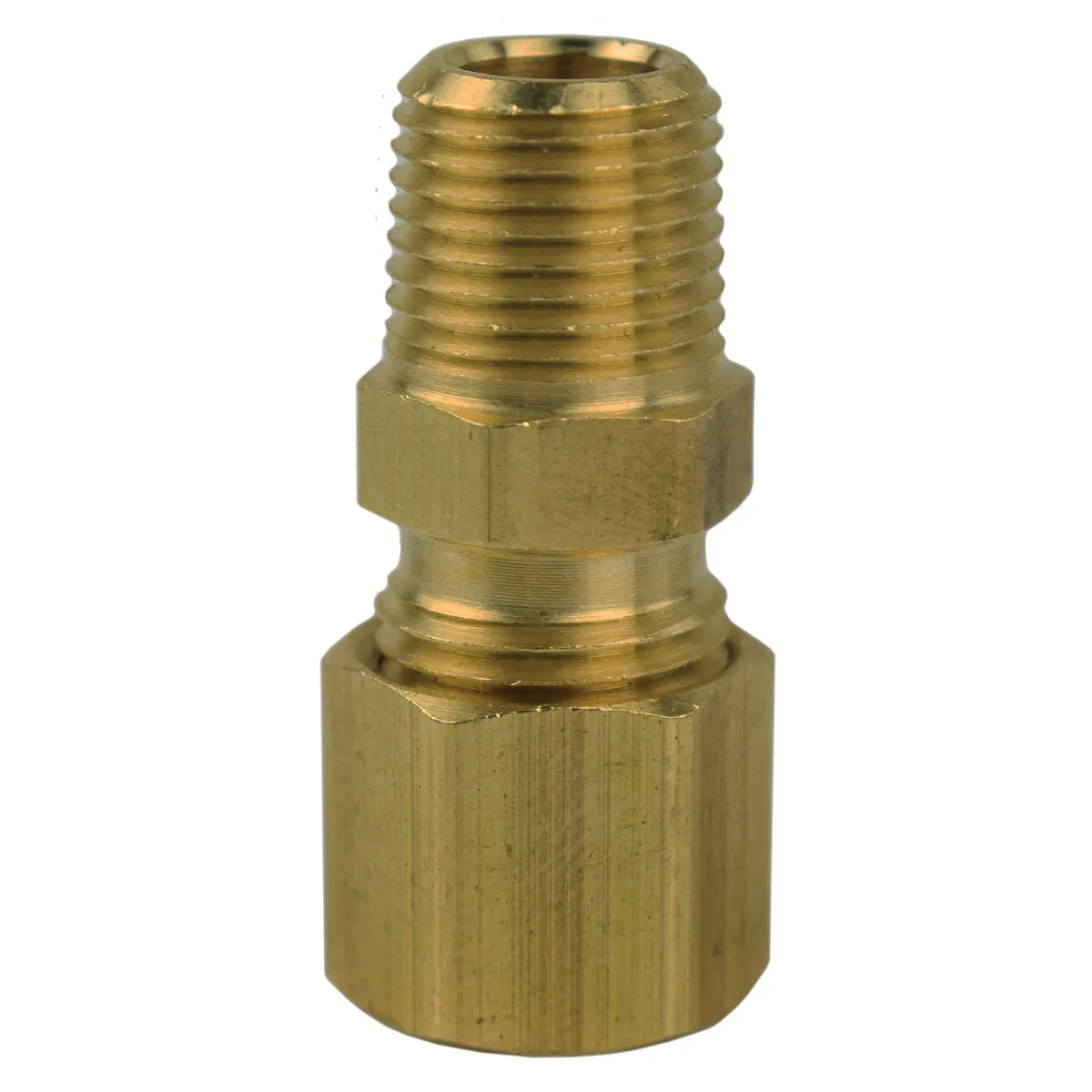

1/4" x 1/8" Compression x Male NPT Adapter

This is a 1/4" Compression x 1/8" Male NPT fitting and is made of solid brass. This fitting is used to connect 1/4" outside diameter tubing to threaded pipe conforming to the National Pipe Thread (NPT) standard. This coupling is for a fixed connection between tubing and pipe made of copper, aluminum, and thermoplastic.

A single ferrule compression fitting connects to tubing on one end for a leak-resistant seal, and a male NPT connector on the other end connects to a threaded pipe. Single ferrule compression fittings have fewer possible leak paths than twin ferrule fittings.

Specifications:

• Use with Copper, Aluminum, and Thermoplastic Tubing
• Not Recommended for Steel Tubing
• Max Pressure: 300 PSI
• Vibration Resistance: Fair
• Temperature Range: -65°F to 250°F
• Tolerance: /- .02 on All Dimensions
• Meets Specifications and Standards of ASA, ASME, and SAE

This listing is for one (1) compression adapter.
